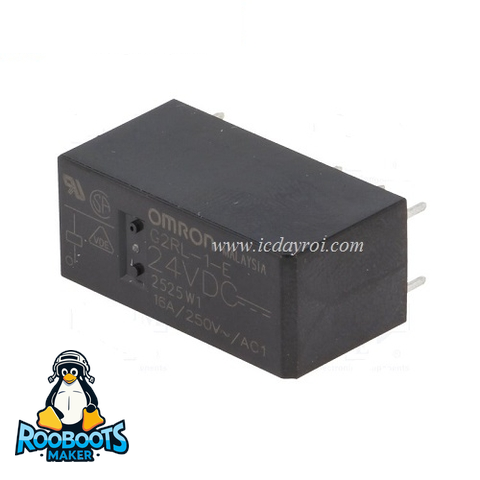

Relay omron G2RL-1-E-24VDC
(0 đánh giá)
-
Thương hiệu: OMRON
-
Mã sản phẩm: 311451
-
Còn trong kho
-
30,000đ
- Giá sau Thuế: 30,000đ
Relay G2RL-1-E-24VDC kích thước 29 x 12.7 x 15.7mm Coil Voltage 24VDC Contact Form SPDT (1 Form C) Contact Rating (Current) 16A Switching Voltage 440VAC, 300VDC - Max Turn On Voltage (Max) 16.8 VDC Turn Off Voltage (Min) 2.4 VDC Operate Time 15ms Release Time 5ms Features Insulation - Class F, Sealed - Flux Protection Mounting Type Through Hole Termination Style PC...
Relay G2RL-1-E-24VDC kích thước 29 x 12.7 x 15.7mm
| Coil Voltage | 24VDC | |
|---|---|---|
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 16A | |
| Switching Voltage | 440VAC, 300VDC - Max | |
| Turn On Voltage (Max) | 16.8 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 15ms | |
| Release Time | 5ms | |
| Features | Insulation - Class F, Sealed - Flux Protection | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Material | Silver Alloy, Cadmium Free | |
| Coil Power | 400 mW | |
| Coil Resistance | 1.44 kOhms |
