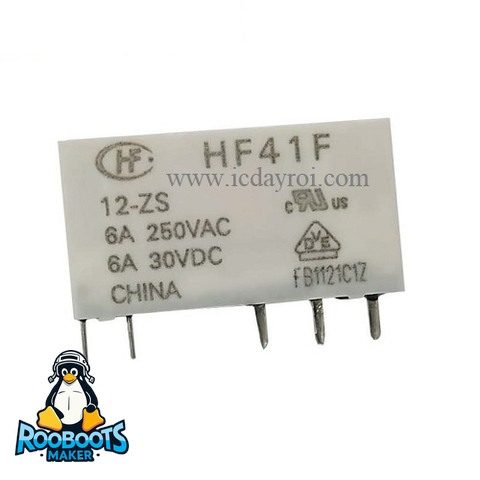

Relay HF41F-12-ZS 5 chân
(0 đánh giá)
-
Thương hiệu: Hongfa
-
Mã sản phẩm: 224950
-
Còn trong kho
-
28,000đ
- Giá sau Thuế: 28,000đ
Thương hiệu: Hongfa
| Coil Voltage | 12V |
|
| Contact Rating | 6A@250VAC;6A@30VDC |
|
| Contact Resistance | 100mΩ |
|
| Release Time | 4ms |
|
| Operate Time | 8ms |
|
| Coil Resistance | 147Ω |
|
| Maximum Switching Voltage | 400V@AC;125V@DC |
|
| Maximum Switching Current | 6A |
|
| Contact Form | One Conversion: 1C (SPDT-Conversion) |
|
| Coil Rated Power | 170mW |
|
| Operating Temperature | -40℃~+85℃ |
|
| Coil Type | Non-polar - Single Coil |
|
| Pin Number | 5 |
