Module CC2500

Module CC2500

  • Mã sản phẩm: 39484

  • Còn trong kho

  • 30,000đ

  • Giá sau Thuế: 30,000đ

CC2500 2.4GHz transceiver module 4G wireless transceiver module Bidirectional communication CC2500 SPI low power SPI interface, half-duplex communication, using TI's CC2500 chip design, operating frequency 2.4GHz. Large quantities, peers most compact in size Technical Specifications Operating voltage: 1.8V ~ 3.6V Current: receiving current <16.5mA emission...

Thêm vào yêu thích
So sánh sản phẩm

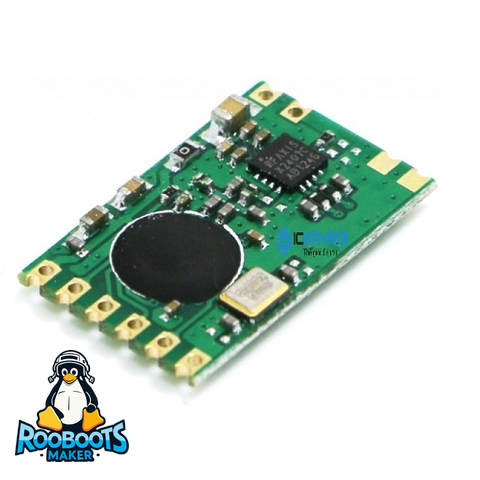

CC2500 2.4GHz transceiver module

4G wireless transceiver module Bidirectional communication CC2500 SPI low power
SPI interface, half-duplex communication, using TI's CC2500 chip design, operating frequency 2.4GHz. Large quantities, peers most compact in size

Technical Specifications

  • Operating voltage: 1.8V ~ 3.6V
  • Current: receiving current <16.5mA emission current <21mA (0dBm)
  • Operating frequency: 2.4GHz
  • Modulation: GFSK
  • Transmit Power: -30dBm ~ 0dBm
  • Receiver sensitivity: -98dBm (rate 10Kbps)
  • Transfer rate: 1.2 ~ 500Kbps
  • Interface: SPI
  • Sleep current: <1uA
  • Packaging: 17.7 * 12 * 2.2mm SMD / DIP
