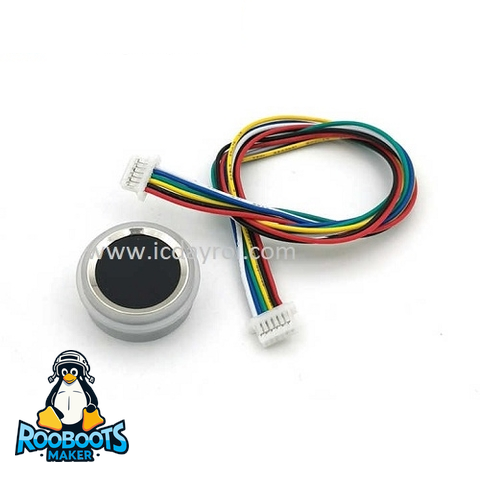

Cảm biến vân tay R502-F
(0 đánh giá)
-
Mã sản phẩm: 44939
-
Còn trong kho
-
420,000đ
- Giá sau Thuế: 420,000đ
SPECIFICATION Model R502-F Type Capacitive Fingerprint Module Interface UART(TTL) Resolution 508 DPI Voltage DC 3.3V Fingerprint Capacity 200 Sensing array 192*192 pixel Working current 20mA Standby current Typical touch standby voltage: 3.3V, Average current: 2uA Fingerprint module external size Diameter 21.5(mm) Fingerprint module inner size Diameter 19.5(mm) Fingerprint module height 9(mm) Effective collection area Diameter 15.5 (mm) Connector MX1.0-6Pin LED Control YES LED Color RGB Scanning Speed < 0.2 second Verification Speed < 0.3 second Matching Method 1:1;...
|
SPECIFICATION |
|
|
Model |
R502-F |
|
Type |
Capacitive Fingerprint Module |
|
Interface |
UART(TTL) |
|
Resolution |
508 DPI |
|
Voltage |
DC 3.3V |
|
Fingerprint Capacity |
200 |
|
Sensing array |
192*192 pixel |
|
Working current |
20mA |
|
Standby current |
Typical touch standby voltage: 3.3V, Average current: 2uA |
|
Fingerprint module external size |
Diameter 21.5(mm) |
|
Fingerprint module inner size |
Diameter 19.5(mm) |
|
Fingerprint module height |
9(mm) |
|
Effective collection area |
Diameter 15.5 (mm) |
|
Connector |
MX1.0-6Pin |
|
LED Control |
YES |
|
LED Color |
RGB |
|
Scanning Speed |
< 0.2 second |
|
Verification Speed |
< 0.3 second |
|
Matching Method |
1:1; 1:N |
|
FRR |
≤1% |
|
FAR |
≤0.001% |
|
Work environment |
-20C ---60C |
|
Work Humidity |
10-85% |
|
Anti-static capacity |
15KV |
|
Abrasive resistance intensity |
1 million times |
|
Communications baud rate (UART): |
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
